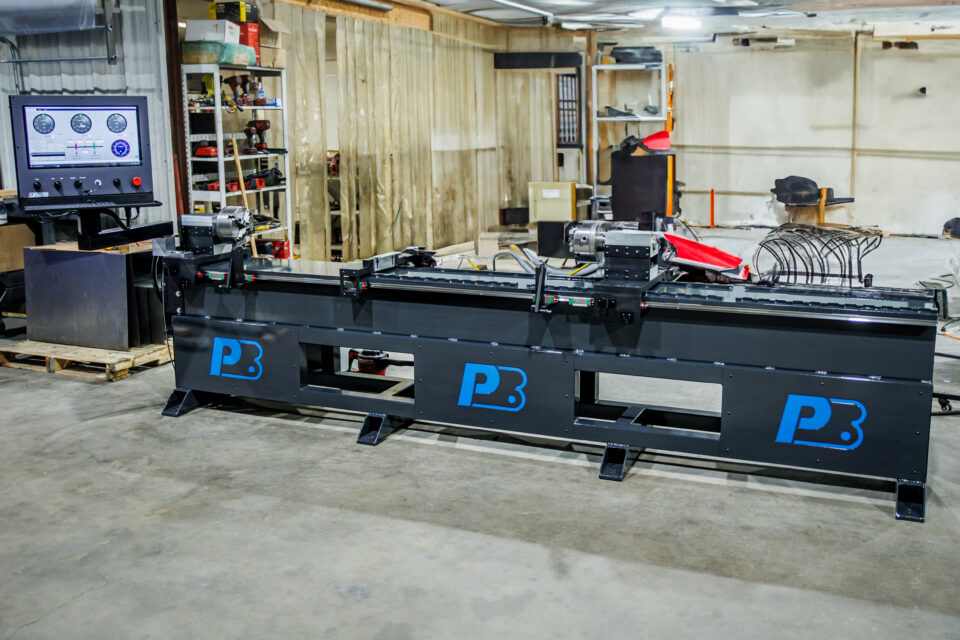

Probal PB-L500 Dynamic
Driveshaft Balancer
The PB-L500 Dynamic Driveshaft Balancing Machine is designed to make automotive and diesel driveshaft balancing simple and cost effective.
Using our recently updated end drive, chuck-based system, you will be able to balance drive-shafts, CV shafts, half-shafts and more! The mounting system allows for a wide variety of parts to be balanced without changing adapters and spins the shaft from a single end where you never have to adjust the belt tension or change belt lengths.
Specifications
| Length Between Support Beams | 3" - 117.5" |
| Diametral Range Between Support Bearings | 31" |
| Maximum Rotor Diameter Between Bearings (Overhung) | 80" |
| Diameter Ranger at Support Bearings | 1/2" to 4" with Delrin V-Blocks |
| Drive Diameter Capacity | 10" |
| Cradle Base Length | 120" (Extendable) |
| Shipping Weight | 2000 Lbs |
| Weight Range | 1-2000 Lbs |
| Drive System Type | Wraparound |
| Operating Speed | 100 - 1000 RPM |
| Motor with Variable Control | 1 HP AC |
| Input Power Requirements | 110V or 220V Single Phase |
| Length Between Support Beams | 76mm - 2984.5mm |
| Diametral Range Between Support Bearings | 787.5mm |
| Maximum Rotor Diameter Between Bearings (Overhung) | 2032 |
| Diameter Ranger at Support Bearings | 12.7mm to 101.5mm with Delrin V-Blocks |
| Drive Diameter Capacity | 254mm |
| Cradle Base Length | 3048mm (Extendable) |
| Shipping Weight | 907 kg |
| Weight Range | < 907 kg |
| Drive System Type | Wraparound |
| Operating Speed | 100 - 1000 RPM |
| Motor with Variable Control | 1 HP AC |
| Input Power Requirements | 110V or 220V Single Phase |
