PC500 Crankshaft

Balancing Machine

The ProBal 500 PC crankshaft balancing machine has been specifically designed to balance crankshafts. It takes up the least possible floor space, balances any automotive, light diesel or motorcycle crankshaft, costs less than any other similarly equipped machine, and is the easiest to use crankshaft balancer on the market today.

Crankshaft-Balancer-Probal500

After viewing our demo video, be sure to view each of the tabs below for a full product tour of our ProBal 500 Crankshaft Balancer and all of its features and specs!

Probal 500 in Action

While the ProBal 500 PC is primarily a crankshaft balancer, the machine is not limited to balancing crankshafts only. It is equally useful as an industrial balancer, fan balancer, electric motor balancer and general dynamic balancing machine.

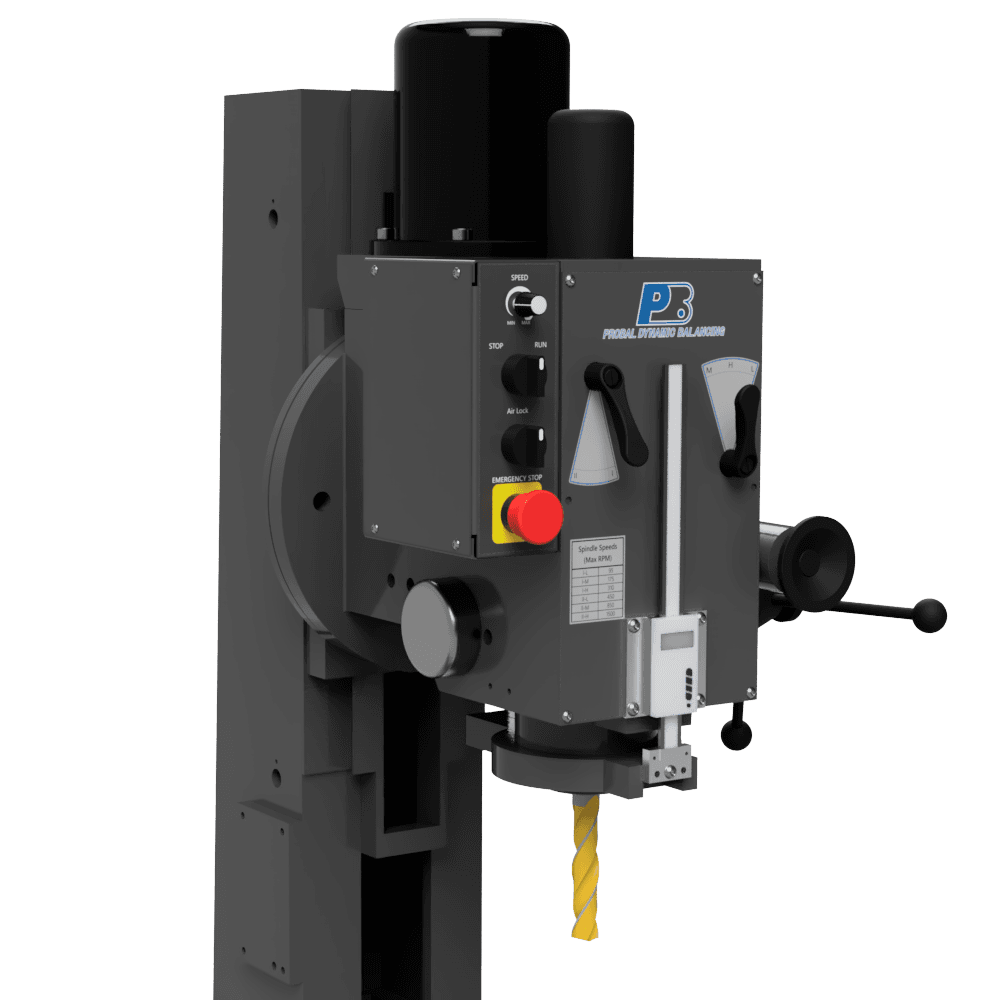

The overhead drive option opens up the machine to balancing larger diameter parts with no surface on which to place a wrap around belt. This overhead drive is the same as that used by Stewart Warner and Pro-Bal for the last sixty years and is the most versatile drive system available and unique to the T&S/ProBal machines. The drill press used for the crankshaft balancing machine is a heavy-duty flat-way drill press that easily slides on Thompson bars for quick and effortless positioning for drilling.

Specifications

Length Between Support Beams3" - 33.5"
Diametral Range Between Support Bearings31"
Maximum Rotor Diameter Beyond Bearings80" (Overhung)
Diameter Range At Support Bearings1/2" to 4"
Drive Diameter Capacity10"
Cradle Base Length36"
Shipping Weight1500 Lbs
Weight Range1 - 2000 Lbs
Drive System TypeWraparound
Operating Speed100 - 1000 RPM
Motor with Variable Control1 HP AC
Input Power Requirements110V or 220V Single Phase
Length Between Support Beams76mm - 851mm
Diametral Range Between Support Bearings787mm
Maximum Rotor Diameter Beyond Bearings2032mm (Overhung)
Diameter Range At Support Bearings13mm to 102mm
Drive Diameter Capacity254mm
Cradle Base Length914mm
Shipping Weight680 kg
Weight Range< 907kg
Drive System TypeWraparound
Operating Speed100 - 1000 RPM
Motor with Variable Control1 HP AC
Input Power Requirements110V or 220V Single Phase
Drilling Capacity1.125" Diameter
Headstock Travel13.125"
Throat11.5"
Spindle TaperMT4
Drive TypeGear
Spindle Speed100 - 1600 RPM
Head Tilt90º
Additional FeaturesHalogen Work Light Digital Readout for Spindle Speed and Depth, Digital Angle Readout, Power Height Adjustment of Drill Head
Drilling Capacity28.5mm Diameter
Headstock Travel333.5mm
Throat292mm
Spindle TaperMT4
Drive TypeGear
Spindle Speed100 - 1600 RPM
Head Tilt90º
Additional FeaturesHalogen Work Light Digital Readout for Spindle Speed and Depth, Digital Angle Readout, Power Height Adjustment of Drill Head
